What We Offer



Hand Hewn Timber Frame Kits for Sale



If you are interested in purchasing one of our hand hewn timber frame structures or would like more information, please contact us. And remember, although we are located in Ontario, Canada, we ship our products anywhere in the world. If you do not see the size of frame kit that you are looking for, please let us know. We can easily modify frames to the desired size. We can also modify reclaimed timber frame kits to include a loft, change a roof pitch, etc. We can also relocate your hand hewn timber frame barn for you.

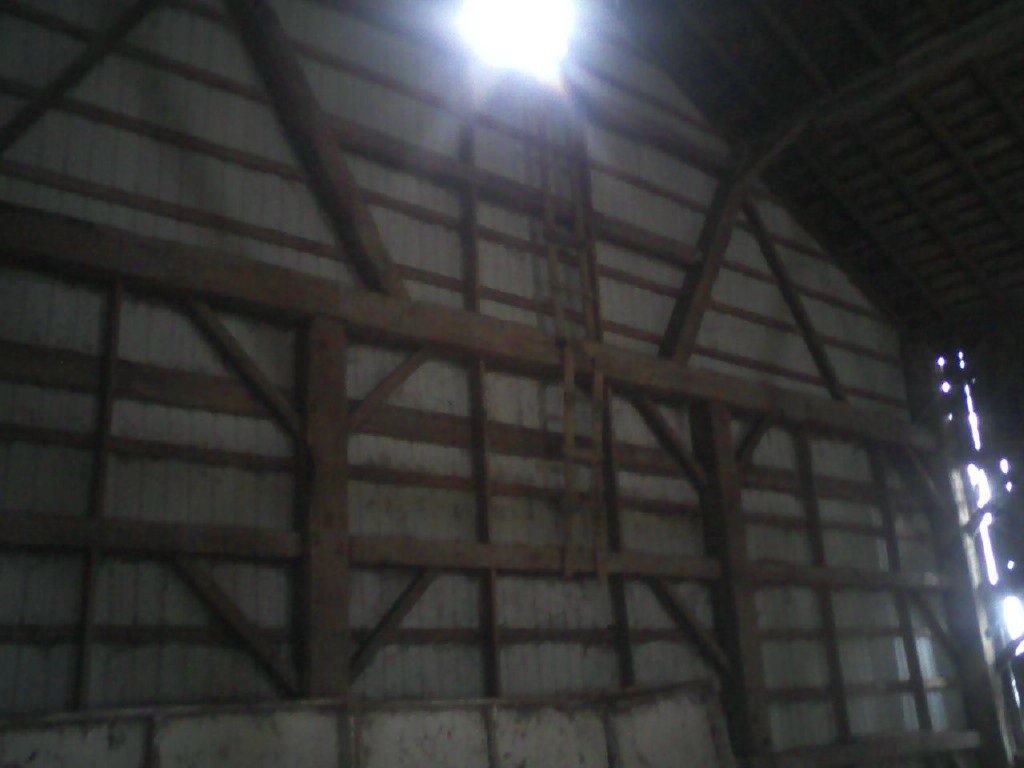

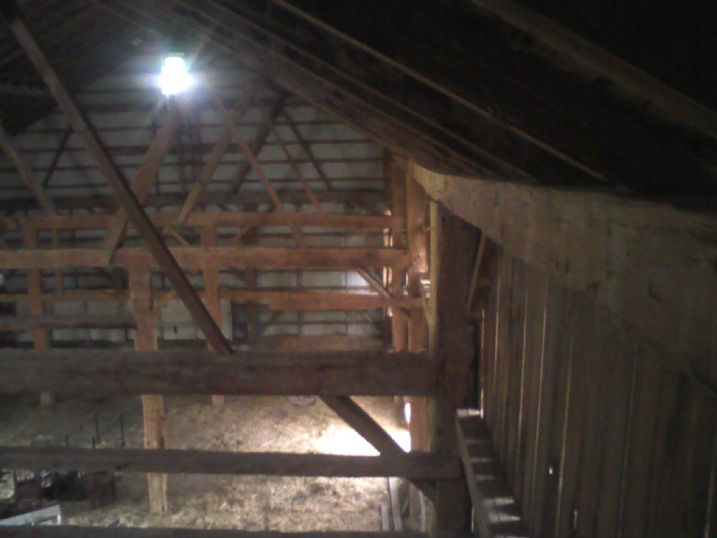

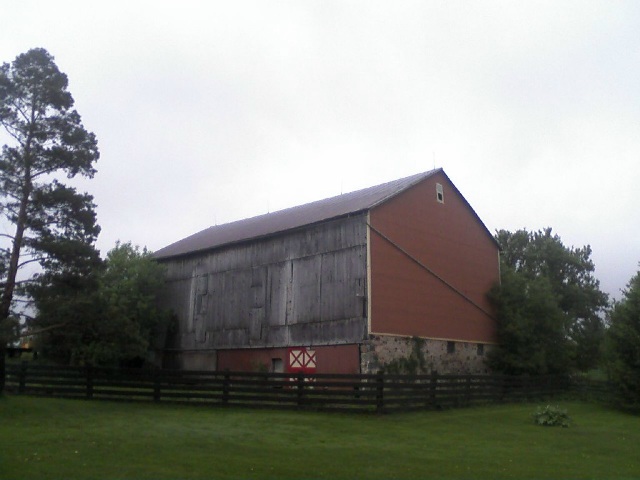

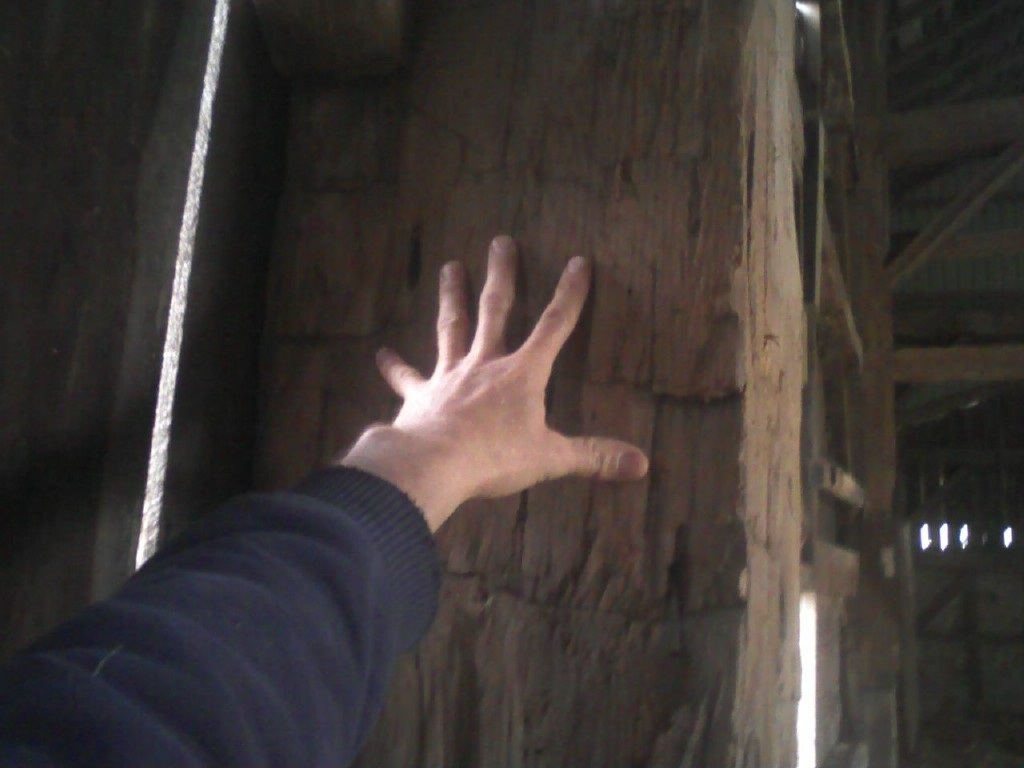

 Carrick:  Hand Hewn Timber Frame Kit

This hand hewn pine frame is in excellent shape.  The ties and posts measure a massive 13 inches by 13 inches.  It measures  45 x 75 and is a five bent frame.  This barn also contains a  double threshing floor.

Barn ID:  Carrick                                                                                               Size:  45 x 75                                                                                                     Condition:  Excellent

Click here to view Blueprints



*This barn has been sold.

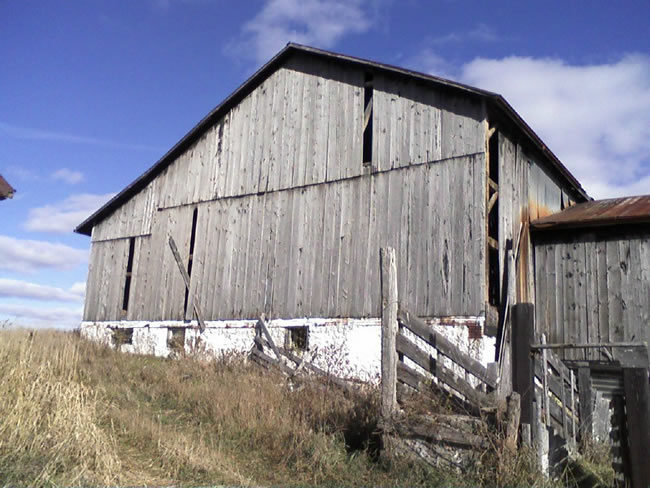

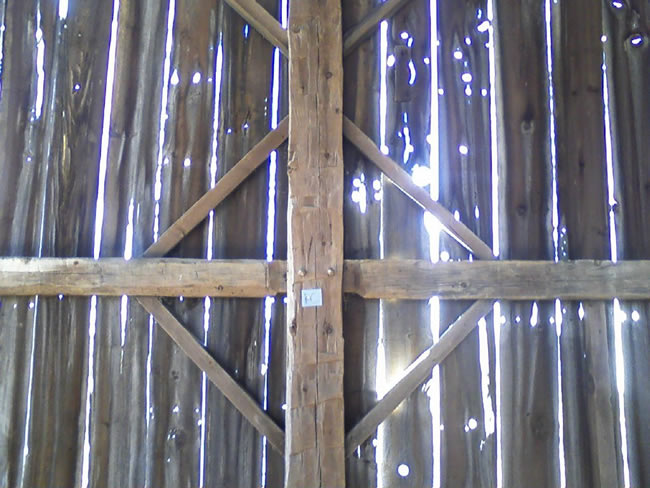

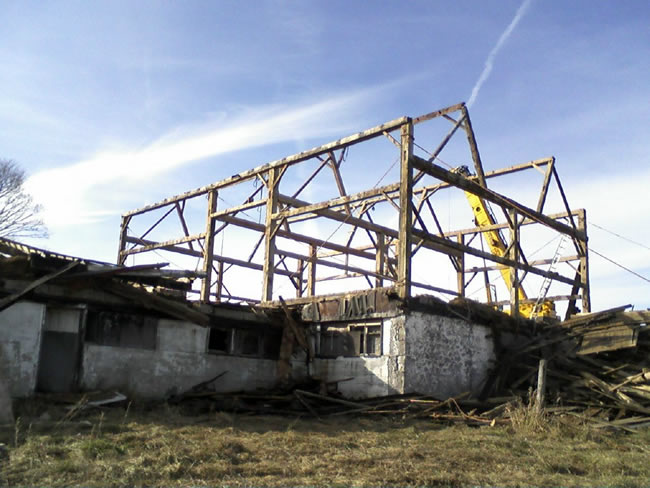

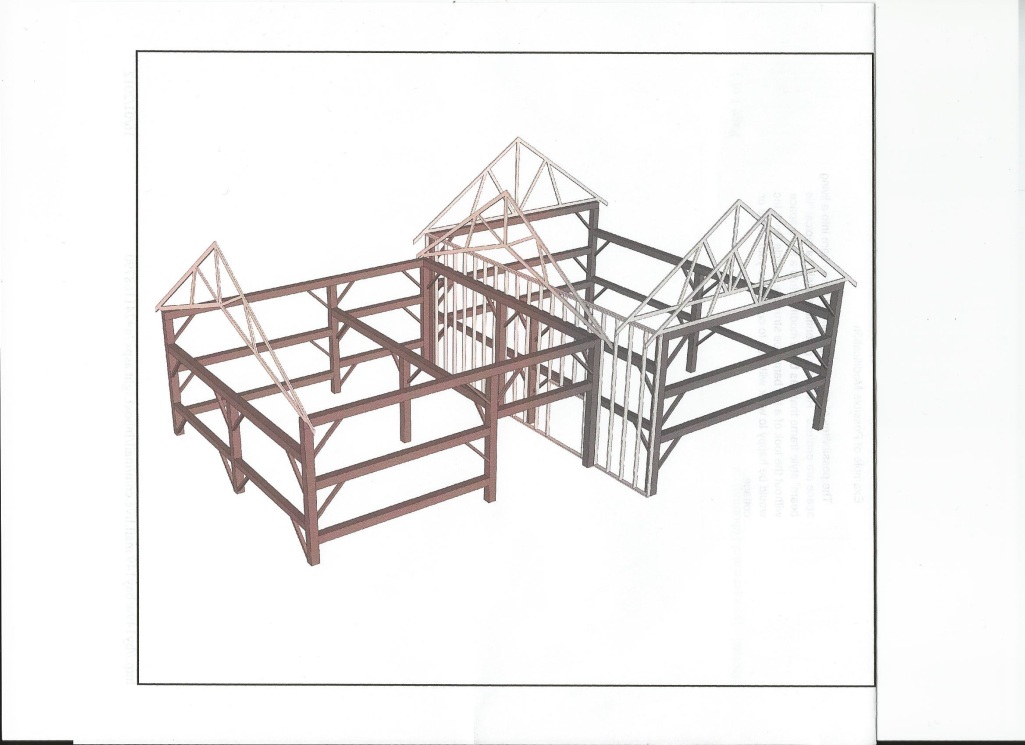

Puslinch: Hand Hewn Timber Frame Kit. This frame is a very basic Pine hand hewn timber frame kit. The timbers are very well preserved.  Originally there was a swing beam in this frame, but is now missing. It would be possible to find a swing beam to fit back into this frame. This would be a perfect frame to reduce in size, if so desired.

Barn ID: Puslinch
Size: 40' x 60'
Vintage: Mid to late 1800's
Condition: Excellent

Click here to Blueprints



*This barn has been sold.

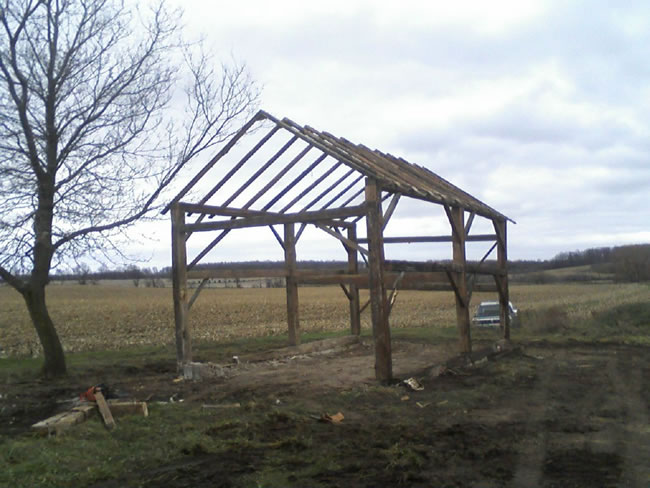

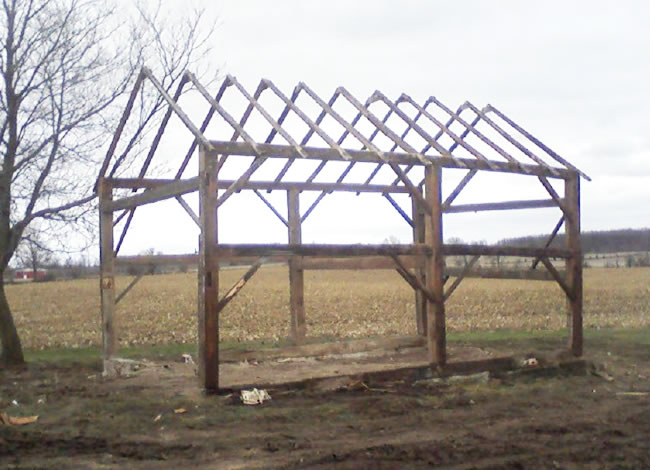

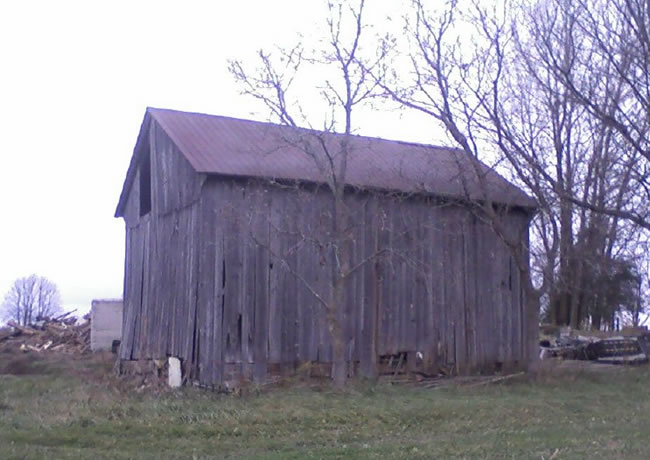

Grey Twsp: Hand Hewn Timber Frame Kit


This is a very basic 18' x 28' hand-hewn pine frame.
The sidewalls are quite high at 13' in this three bent frame. The timber is in excellent shape.

Barn ID: Grey Twsp
Size: 18' x 28'
Condition: Excellent

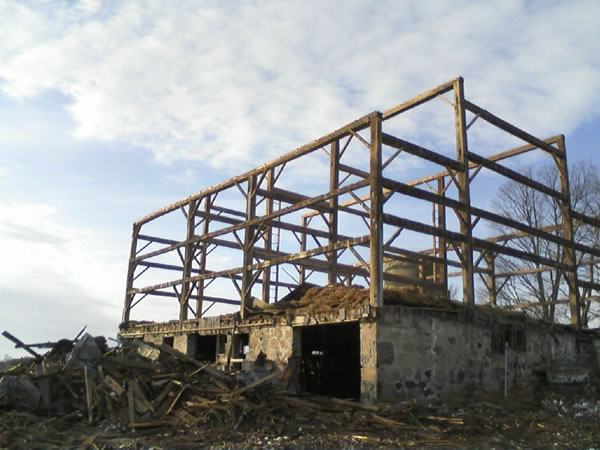

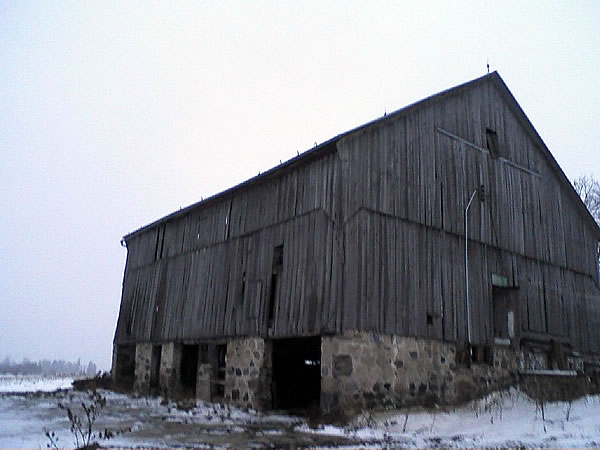

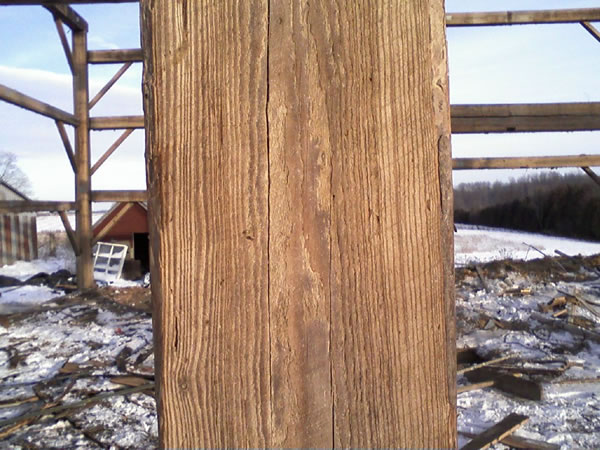

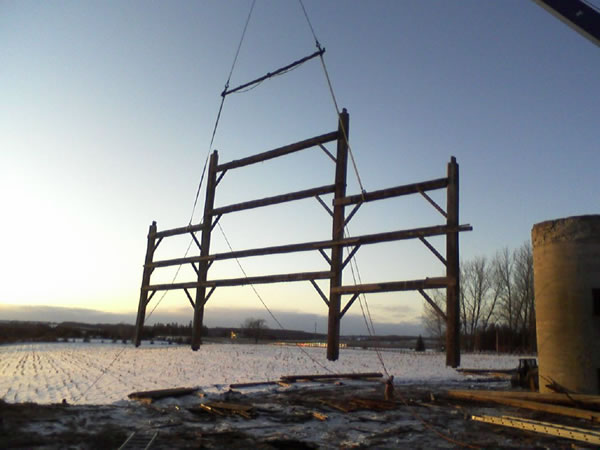

Culross: Sawn Tamarack Hand Hewn Timber Frame Structure


This four bent, 50 x 56 frame is made entirely out of sawn tamerack timbers. The colour is beautiful. It is a high post style of hand hewn timber frame structure. There is lots of height with the side walls measuring roughly 18 feet and the peak is roughly 35 feet high. This frame is in excellent shape and dates back to the late 1800's.

Barn ID: Culross
Size: 50' x 56'
Vintage: late 1800's
Condition: Excellent

Click here to Blueprints



* This barn has been sold.

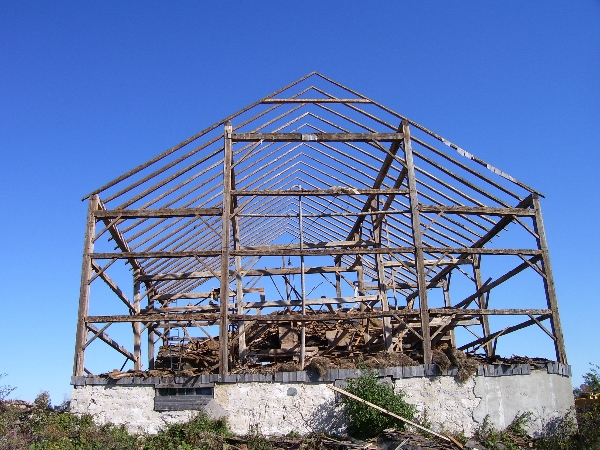

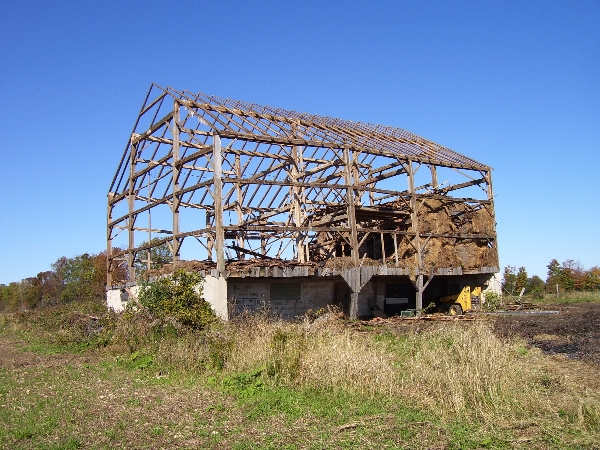

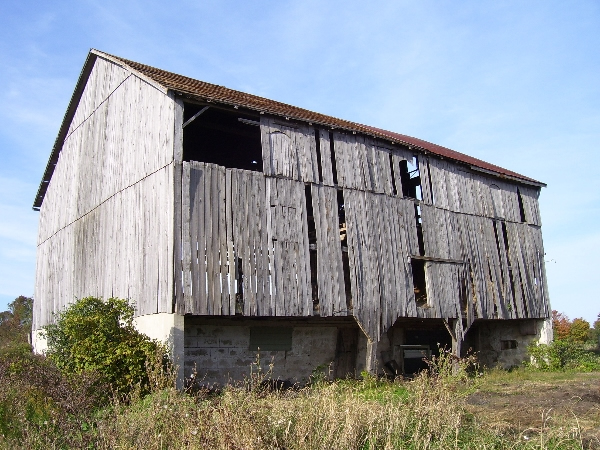

Glenelg: Hand Hewn Timber Frame Structure


An excellent high post, softwood frame, this barn was built in the late 1800's by the James Brodie and Sons timber framing company. This large frame has sidewalls measuring 19'9 to the plate. The interior has large open spaces with the biggest space being 24' X 52'. Presently under cover and ready to ship, it is tagged and blueprints are available.

Barn ID: Glenelg
Size: 52' x 62'
Vintage: 1890
Condition: Excellent

Click here to View Blueprints


* This barn has been sold.

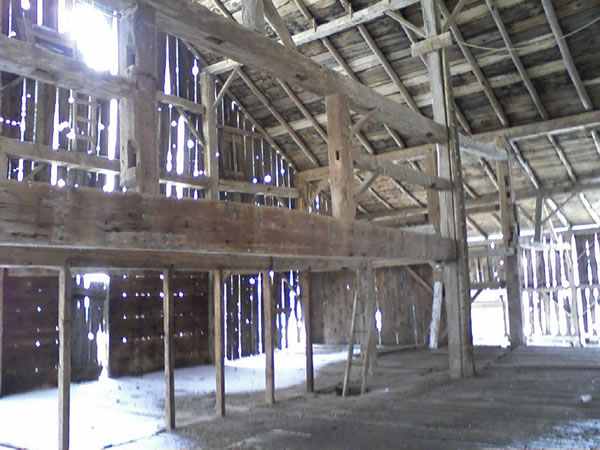

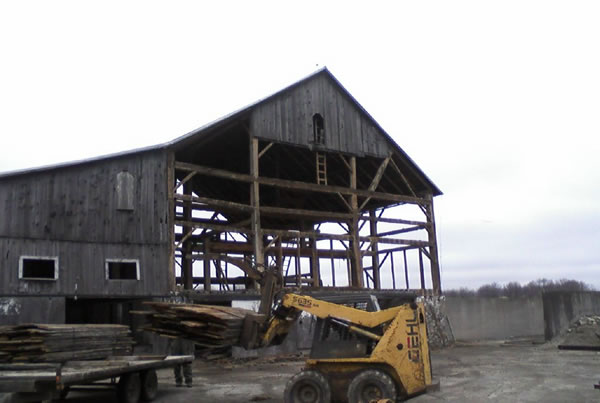

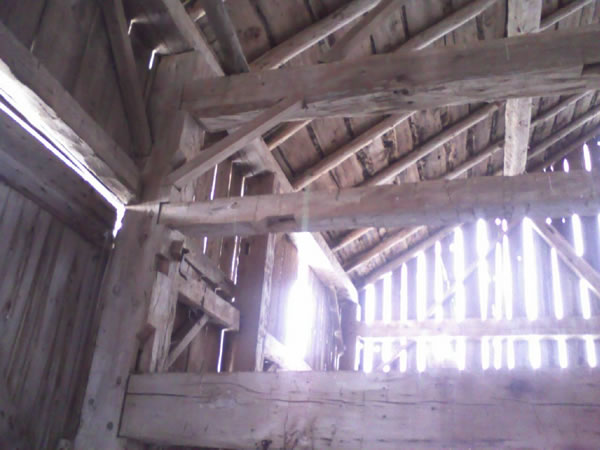

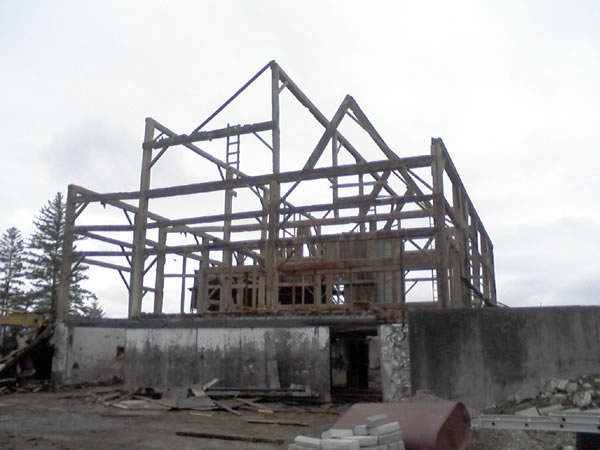

Greenock: Hand Hewn Barn Frame


This hand-hewn pine frame is very well preserved. The plates and purlins run the full length of the barn without a splice, measuring 60' in length! The timbers are very heavily dimensioned. The posts and tie beams are 12" x 12" and the swing beam measures 20" in the centre. This frame was made higher and wider at one point. The entire south wall was moved out 14'. The original 36' x 60' frame will fit back together perfectly, returning the roof line to it's original position. View pdf

Barn ID: Greenock
Size: 36' X 60' Pine Frame with a swing beam
Vintage: Mid to late 1800's
Condition: Excellent

Click here to View Blueprints


* This barn has been sold.

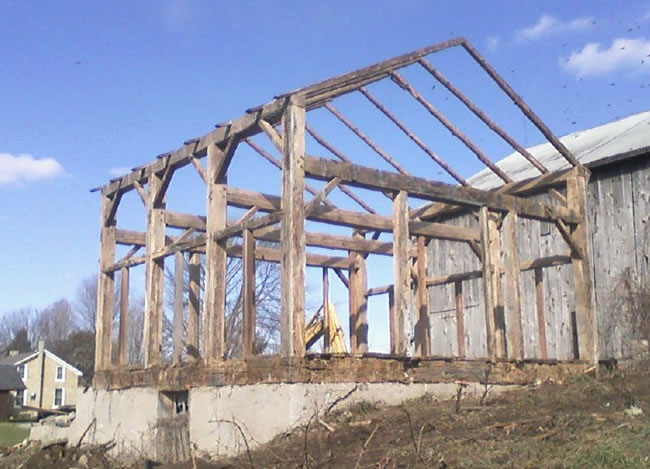

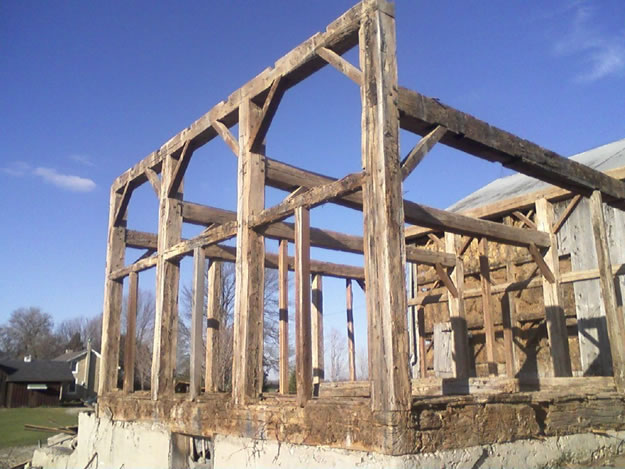

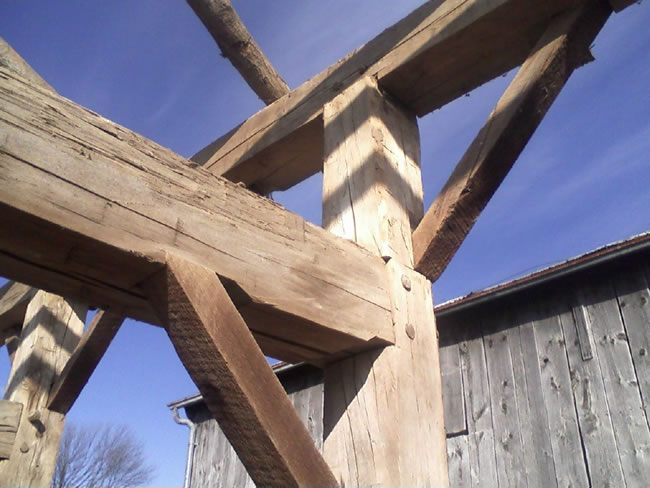

Thorndale: Hand Hewn Barn Frame


This frame is a four bent mixed hardwood frame.
It measures 20' x 20' with pole rafters.


* This barn has been sold.

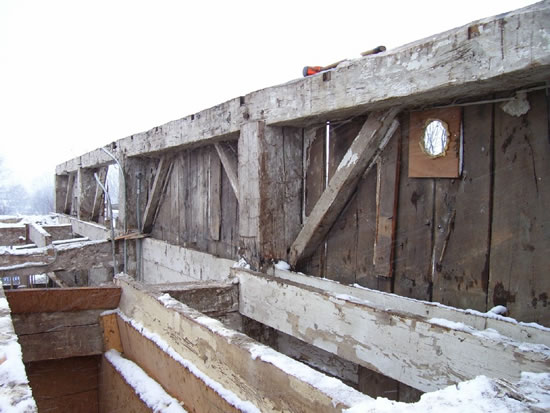

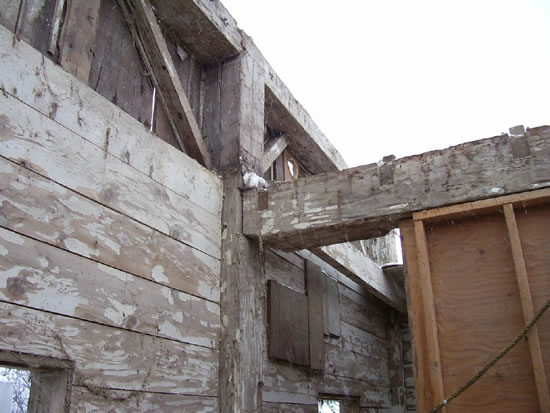

Clifford: Hand Hewn Barn Frame


This hand hewn, elm frame was once the third and fourth floor of the Clifford Feedmill in rural Ontario. There are five bents roughly 11' apart and the fourth floor rough sawn joists are notched into the tie beams. During dismantling, the frame was cut free from the rooms and bins which the mill was full of, and then lifted out with a crane. At no time was there a naked frame standing and as a result the pictures available for this frame do not do it justice. This frame is perfect for anyone wanting a loft, since it is already framed into the structure.

Barn ID: Clifford
Size: 38' x 45'
Vintage: 1867
Condition: Excellent


* This barn has been sold.

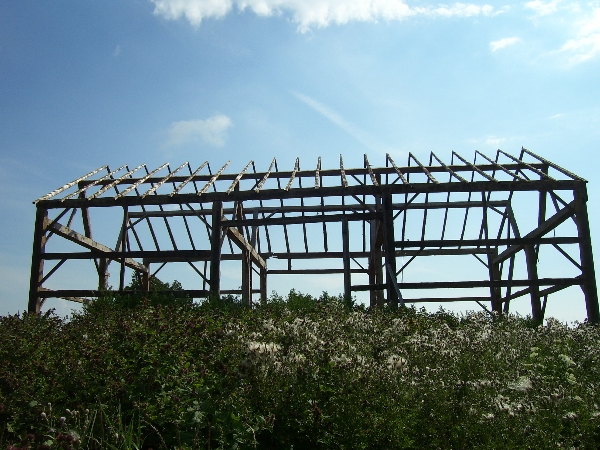

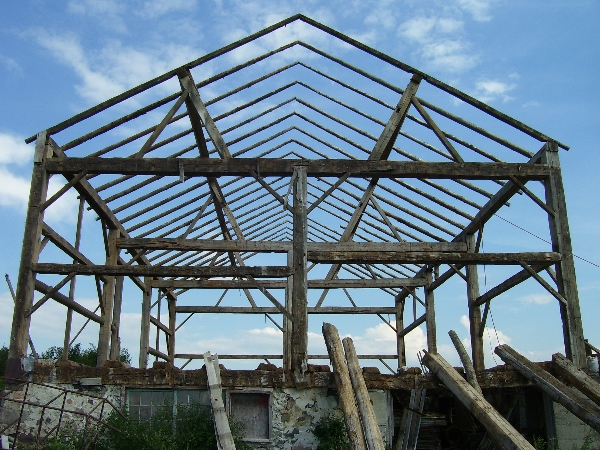

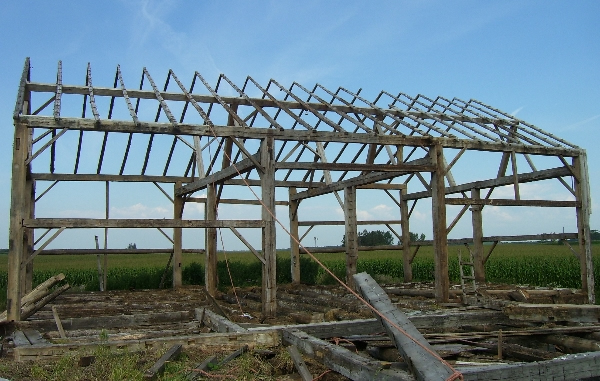

Howick: Hand Hewn Barn Frame


This is a restored barn frame from Howick Township in Ontario, Canada. It is a four bent, pine frame with heavy dimension tie beams and posts (10' x 10' or larger). A swing beam could be provided if a person wished to incorporate it into this frame.

Barn ID: Howick
Size: 36' x 56'
Vintage: 1875
Condition: Good


* This barn has been sold.

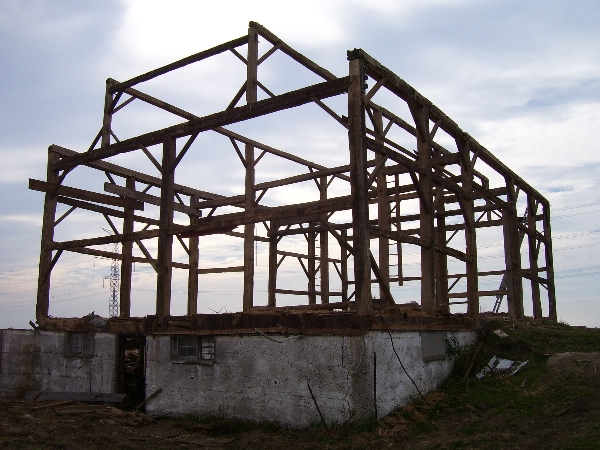

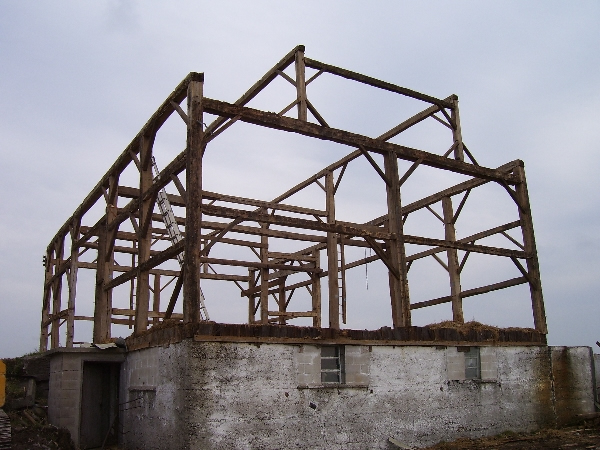

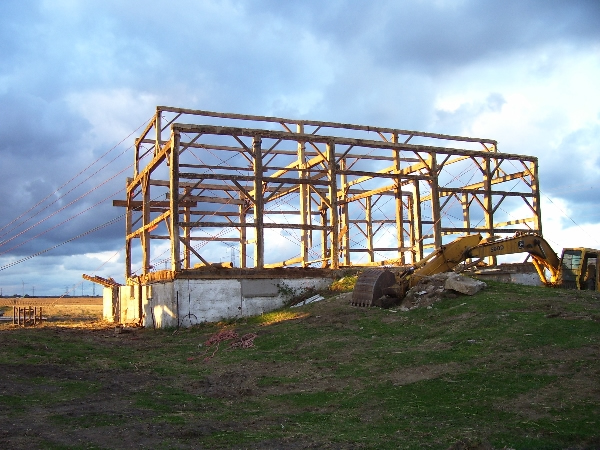

Colborne: Hand Hewn Barn Frame


A truly unique barn frame! The gable end bents are a tie beam style, while the centre two bents are a high post style of timber frame. It is comprised of a mix of hard and soft woods. Presently under cover and ready to ship, it is tagged and blueprints are available.




Barn ID: Colborne
Size: 34' x 56'
Vintage: 1870
Condition: Good


* This barn has been sold.
